Fast Clip Bar Chairs

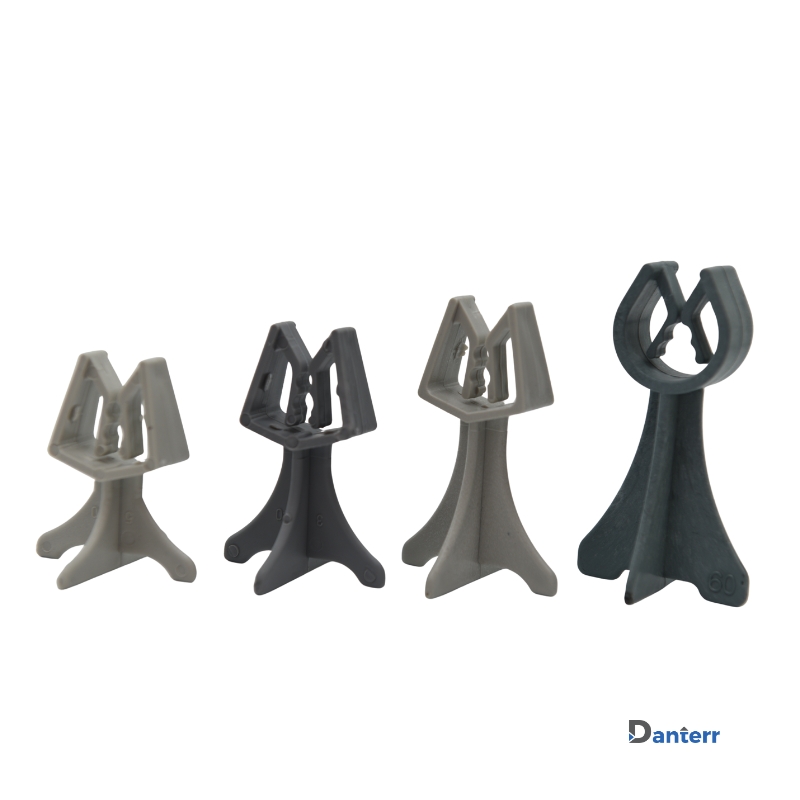

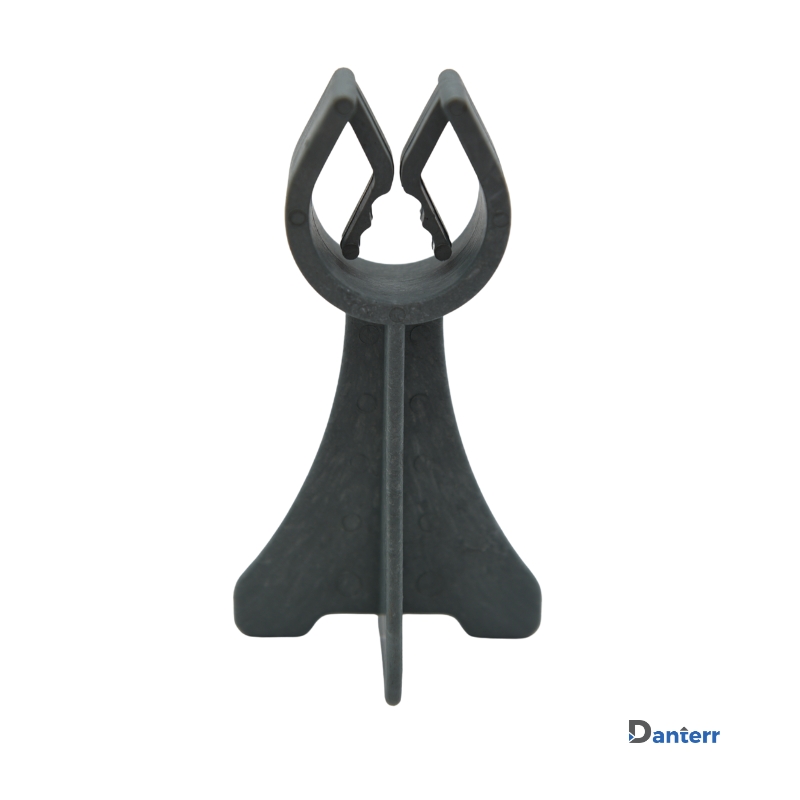

Product description: Fast Clip Bar Chairs are designed to make steel fixing and traceability easier, with each chair identified by cover depth. The two head sizes available accommodate different bar sizes; one for 4mm to 20mm and another for 20mm to 36mm diameter bar. Each chair has an in-built four –legged cross base for stability and is designed to achieve only minimal exposure. Furthermore, if greater stability and even less exposure is required clip-in bases, which are available in 15mm and 25mm heights, are available.

Specification

Small Head – 4mm – 20mm Bar

Product Code	Description	Bag Qty
112533	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 15mm Cover	100
112534	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 20mm Cover	100
112535	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 25mm Cover	100
101491	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 30mm Cover	100
107211	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 35mm Cover	100
107212	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 40mm Cover	100
107213	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 45mm Cover	100
101492	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 50mm Cover	100
107202	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 60mm Cover	100
109627	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 65mm Cover	100
101509	Bar Chairs Fast Clip-On Small Head 4mm-20 mm Bar 75mm Cover	100

Large Head – 20mm – 36mm Bar

Product Code	Description	Bag Qty
112536	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 15mm Cover	100
112537	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 20mm Cover	100
112538	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 25mm Cover	100
112539	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 30mm Cover	100
112540	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 35mm Cover	100
109215	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 40mm Cover	100
112541	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 45mm Cover	100
106422	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 50mm Cover	100
112542	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 60mm Cover	100
112543	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 65mm Cover	100
109987	Bar Chairs Fast Clip-On Large Head 20mm-36 mm Bar 75mm Cover	100

Base Plates

Product Code	Description	Bag Qty
108469	Bar Chair Fast Clip / Mesh Chair Base 15mm Cover	100
112544	Bar Chair Fast Clip / Mesh Chair Base 25mm Cover	100

Benefits

Two head sizes available to accommodation different bar sizes
Clip-in Bases available for greater stability and less exposure
Ideal for Precast and Tilt panels, suspended decks , beams and walls
Rust proof
