Vectorfill™

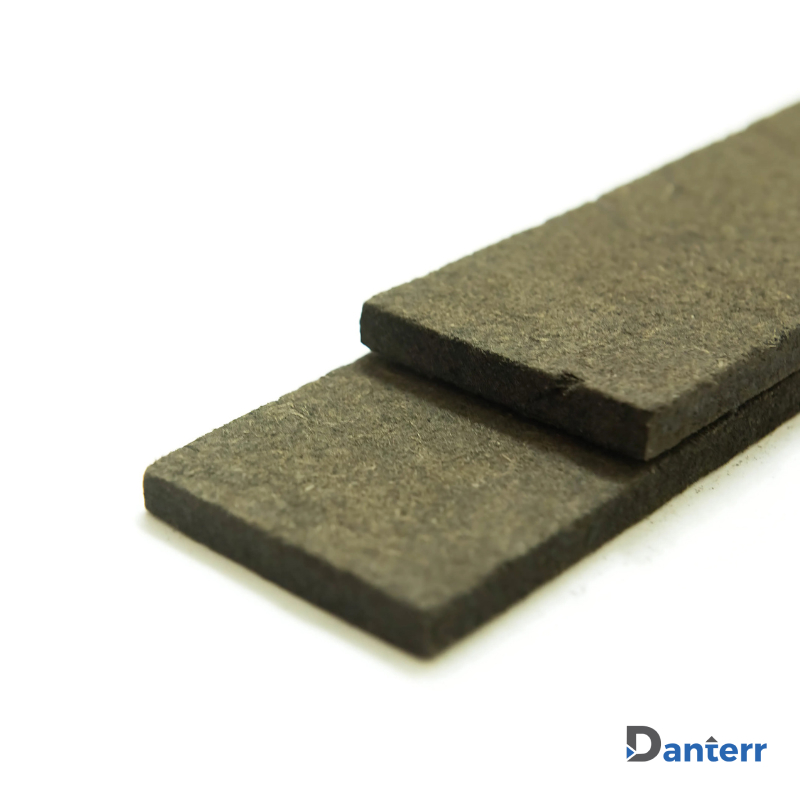

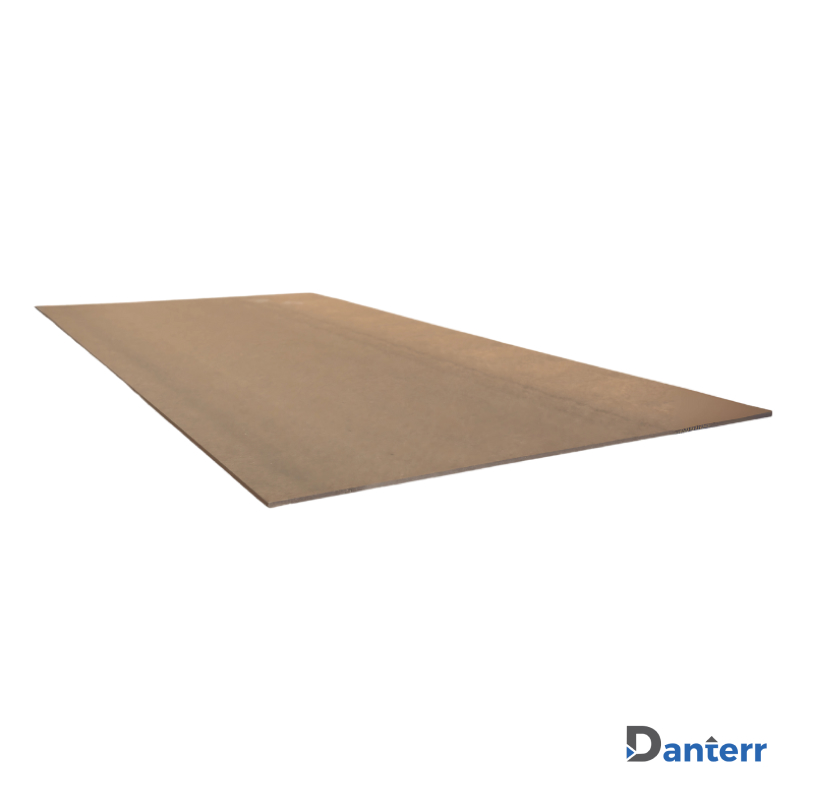

Vectorfill™ is a durable bitumen impregnated fibreboard, designed as a high-performance expansion joint filler for concrete structures. Manufactured to meet stringent construction requirements, Vectorfill provides exceptional resistance to ageing and weathering, ensuring a long-lasting and reliable solution for expansion joint applications. Its non-extruding, non-bleeding, and lightweight properties make it user-friendly and ideal for demanding environments.

Vectorfill™ complies with AU/NZ standards, making it suitable for use in pavements, bridges, buildings, and other infrastructure projects. Available in various thicknesses and sizes, this fibreboard can be easily cut to fit the specific needs of any project, maintaining its integrity even under heavy compression. Its bitumen-impregnated core enhances flexibility, allowing it to adapt to movement within the joints without compromising performance.

Vectorfill™ offers a dependable, cost-effective solution for maintaining structural integrity in concrete expansion joints.

Specification

Stock Code Description Pallet Qty
121000 Bitumen Impregnated Fibreboard 2440mm x 60mm x 9.50mm 500
114731 Bitumen Impregnated Fibreboard 2440mm x 75mm x 9.50mm 700
108026 Bitumen Impregnated Fibreboard 2440mm x 100mm x 9.50mm 600
107868 Bitumen Impregnated Fibreboard 2440mm x 125mm x 9.50mm 450
106141 Bitumen Impregnated Fibreboard 2440mm x 150mm x 9.50mm 400
108027 Bitumen Impregnated Fibreboard 2440mm x 200mm x 9.50mm 300
108091 Bitumen Impregnated Fibreboard 2440mm x 300mm x 9.50mm 200
107081 Bitumen Impregnated Fibreboard 2440mm x 900mm x 9.5mm 115
109335 Bitumen Impregnated Fibreboard 2440mm x 1200mm x 9.5mm 115
127085 Bitumen Impregnated Fibreboard 2200mm x 1200mm x 12mm 93

Key features and benefits

  • Extreme Durability: Long-lasting performance for heavy-duty applications.
  • Aging Resistance: Retains integrity and properties over time.
  • Non-Bleeding & Non-Extruding: Maintains structure and appearance under pressure.
  • Lightweight: Easy to transport, handle, and install.
  • Customisable: Can be cut to desired sizes with ease.
  • Compliance: Meets AU/NZ standards for concrete expansion joints.
  • Versatility: Ideal for bridges, pavements, buildings, and infrastructure requiring joint fillers.
