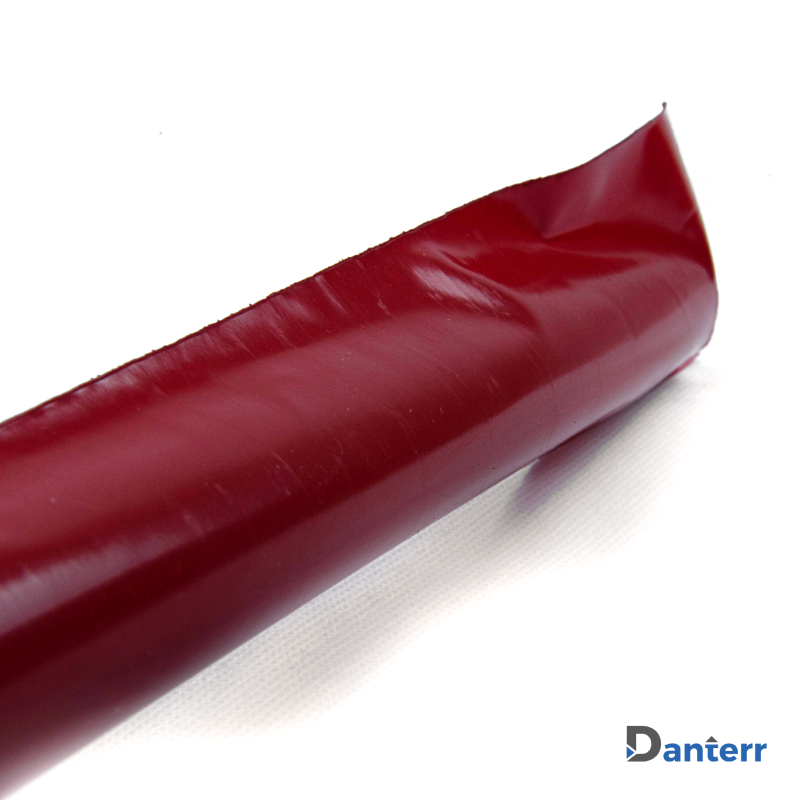

Heat Shrink Sleeves
Heat Shrink Sleeves
Product description: Heat Shrink Sleeves are specially designed wrappings ideal for use with round dowels, eliminating the need for drilling formwork and greasing dowels. These heat shrink sleeving processes provide a reliable, robust barrier against concrete infiltration and ensure efficient load transfer in construction joints.
Available in various sizes from 16mm to 36mm diameter and lengths of 200mm to 400mm, these sleeves are black and conform to AU/NZ standards for quality and performance. The sleeves offer excellent protection against corrosion and environmental factors, making them essential for durable and long-lasting concrete structures.
Heat Shrink Sleeve are particularly effective in environments where precise dowel alignment and protection are critical, such as in industrial and infrastructure projects. They can be easily applied by placing the sleeve over the dowel and using heat to shrink it into place, ensuring a secure and tight fit. This method not only simplifies the installation process but also enhances the overall efficiency and reliability of the joint system.
Specification
| Product Code | Description |
| 106856 | Dowel R16 x 300mm Galvanised |
| 110278 | Dowel R16 x 350mm Galvanised |
| 105192 | Dowel R16 x 400mm Galvanised |
| 109284 | Dowel R16 x 600mm Galvanised |
| 106108 | Dowel R20 x 300mm Galvanised |
| 106109 | Dowel R20 x 400mm Galvanised |
| 106995 | Dowel R20 x 450mm Galvanised |
| 107370 | Dowel R20 x 600mm Galvanised |
| 107229 | Dowel R20 x 700mm Galvanised |
| 108358 | Dowel R20 x 800mm Galvanised |
| 110754 | Dowel R24 x 350mm Galvanised |
| 112837 | Dowel R24 x 400mm Galvanised |
| 107323 | Dowel R24 x 450mm Galvanised |
| 108062 | Dowel R24 x 600mm Galvanised |
| 107068 | Dowel R28 x 240mm Galvanised |
| 106488 | Dowel R28 x 400mm Galvanised |
| 109336 | Dowel R28 x 450mm Galvanised |
| 109695 | Dowel R28 x 600mm Galvanised |
| 110626 | Dowel R30 x 240mm Galvanised |
| 111064 | Dowel R30 x 450mm Galvanised |
| 110127 | Dowel R30 x 600mm Galvanised |
| 113773 | Dowel R32 x 300mm Galvanised |
| 107069 | Dowel R32 x 450mm Galvanised |
| 107910 | Dowel R36 x 450mm Galvanised |
| 111281 | Dowel R36 x 600mm Galvanised |
Stainless Dowels 304 Grade
| Product Code | Description |
| 108534 | Dowel R16 x 300mm Stainless 304 |
| 111801 | Dowel R16 x 400mm Stainless 304 |
| 112340 | Dowel R16 x 1000mm Stainless 304 |
| 111020 | Dowel R20 x 280mm Stainless 304 |
| 107972 | Dowel R20 x 300mm Stainless 304 |
| 107473 | Dowel R20 x 400mm Stainless 304 |
| 107539 | Dowel R20 x 450mm Stainless 304 |
| 107540 | Dowel R20 x 600mm Stainless 304 |
| 113591 | Dowel R25 x 400mm Stainless 304 |
| 112435 | Dowel R25 x 450mm Stainless 304 |
| 112946 | Dowel R28 x 600mm Stainless 304 |
| 111724 | Dowel R28 x 800mm Stainless 304 |
| 111776 | Dowel R28 x 1000mm Stainless 304 |
| 110276 | Dowel R30 x 500mm Stainless 304 |
| 110984 | Dowel R30 x 600mm Stainless 304 |
| 110597 | Dowel R30 x 800mm Stainless 304 |
| 112327 | Dowel R36 x 450mm Stainless 304 |
Stainless Dowels 316 Grade
| Product Code | Description |
| 113366 | Dowel R20 x 150mm Stainless 316 |
| 111284 | Dowel R20 x 400mm Stainless 316 |
| 111648 | Dowel R20 x 450mm Stainless 316 |
| 112897 | Dowel R20 x 500mm Stainless 316 |
| 111275 | Dowel R20 x 600mm Stainless 316 |
| 109501 | Dowel R20 x 800mm Stainless 316 |
| 110902 | Dowel R30 x 500mm Stainless 316 |
| 113429 | Dowel R30 x 600mm Stainless 316 |
| 111116 | Dowel R36 x 450mm Stainless 316 |
| 110919 | Dowel R36 x 500mm Stainless 316 |
Key features and benefits
- Ready to Install: No preparation needed, saving time and effort.
- Bond Breaking: Provides a reliable barrier between dowel and concrete.
- No Grease Needed: Eliminates the need to grease dowels.
- Easy Application: Heat-shrink technology ensures a tight and secure fit.
- Durability: Offers excellent protection against corrosion and environmental factors.
- Compliance: Meets AU/NZ standards for quality and performance.
