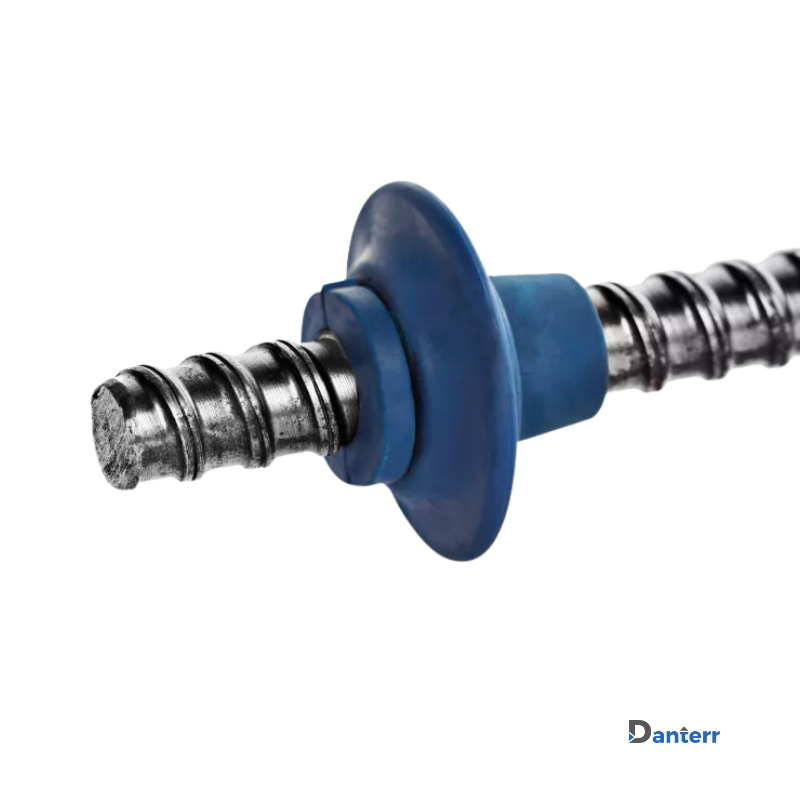

Form Tie Rings & Connectors

Form Tie Rings & Connectors

Product description: Form-Tie Waterstops have excellent sealing capabilities and are available in many different sizes, shapes and profiles to suit the form-work form-tie system to be used. It is made of high quality, non-biodegradable compounded hydrophilic rubber that provides long-term durability and integrity. The Waterstops have been tested to withstand over 50 meters of hydro-static water head pressure and can withstand repeated wet-dry cycles. They have the ability to expand up to 400% when in contact with fresh water, and over 200% expansion in salt water. Furthermore, no external grout is required to fill the form-tie conduit sleeve hole after the Form-Tie Rings and Connectors have been positioned so it is very easy and simple to install. It is useful to many different applications and can be used in portable water structures, as it is non-toxic.  Custom profiles are also available upon request.



SKU: N/A Categories: ,

Specification

Form Tie Rings

Product Code Description Pack Qty
112199 Waterstop Form Tie Sealing Ring 20 x 2mm 200
112200 Waterstop Form Tie Sealing Ring 24mm 100

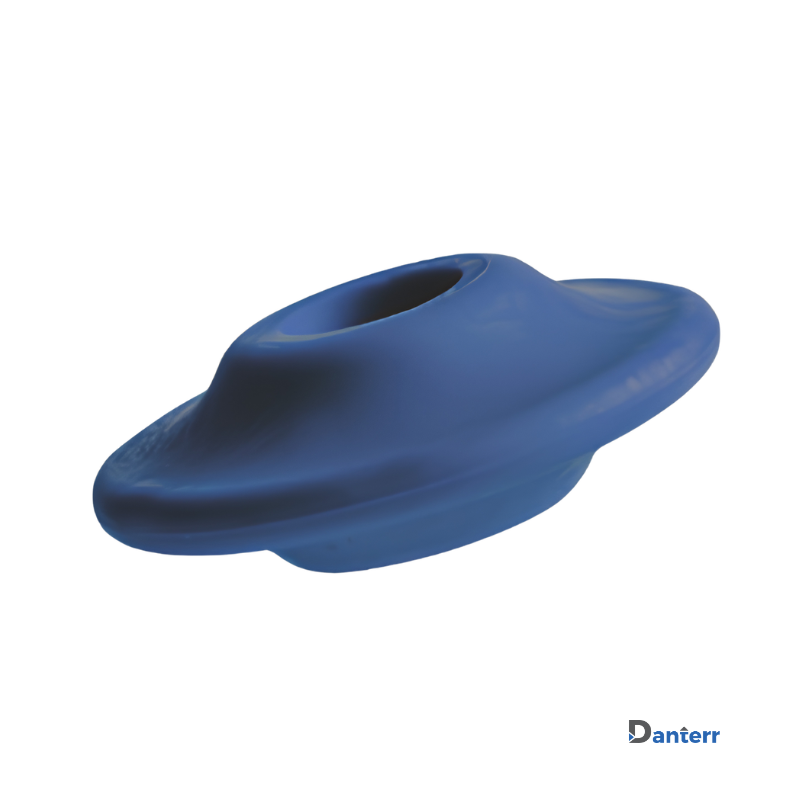

112201 Waterstop Form Tie Ring UFO 12mm 100
110043 Waterstop Form Tie Ring UFO 17mm 100
110455 Waterstop Form Tie Ring UFO 24mm 100
112202 Waterstop Form Tie Ring UFO 31mm 50
112203 Waterstop Form Tie Ring UFO 39mm 50

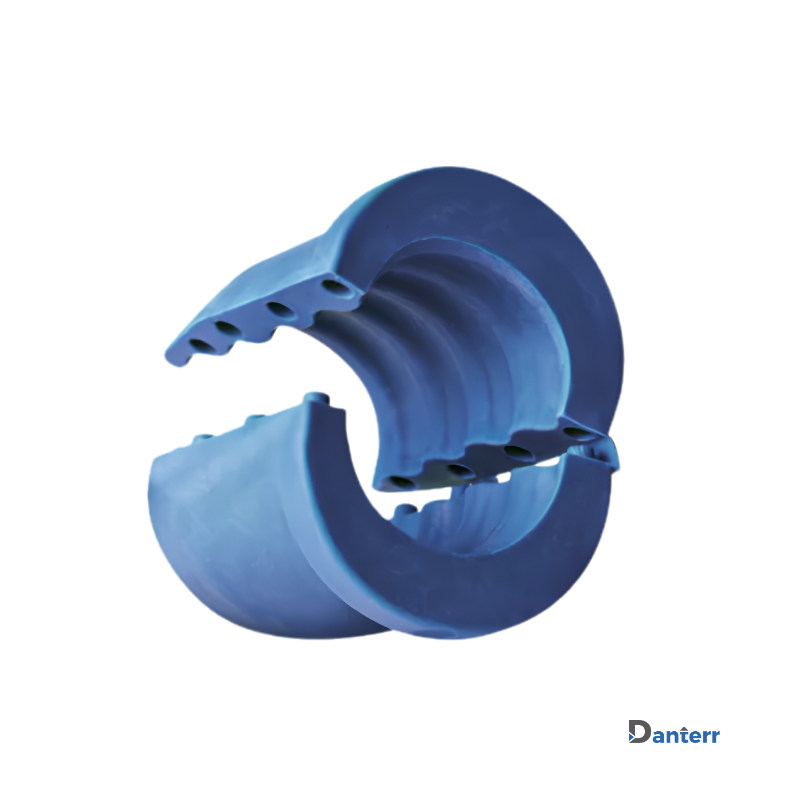

Connectors

Product Code Description Pack Qty
112204 Waterstop Form Tie Sealing Connector 15mm 50
112205 Waterstop Form Tie Sealing Connector 20mm 50
112206 Waterstop Form Tie Sealing Connector 23mm 50
112207 Waterstop Form Tie Sealing Connector 26mm 50
112208 Waterstop Form Tie Sealing Connector 30mm 50

Benefits

  • Excellent sealing capabilities and available in many different sizes, shapes and profiles to suit the formwork form-tie
    system to be used. Custom profiles available upon request.
  • Provides a permanent, flexible gasket and compression seal inside the concrete.
  • High quality, non-biodegradable compounded hydrophilic rubber that provides long-term durability and integrity.
  • Ability to expand up to 400% in contact with fresh water and over 200% expansion in salt water.
  • Has been tested to withstand over 60 metres of hydrostatic water head pressure.
  • For use in many different types of applications but especially suited for water retaining structures where direct water
    pressure is applied against the concrete and the form-tie system.
  • Non-toxic and can be used in potable water structures.
  • Unaffected by repeated wet and dry cycles.
  • Fast and simple to install.
  • Custom sizes available on request
