Converge Helix® – Reusable Wireless Concrete Monitoring System

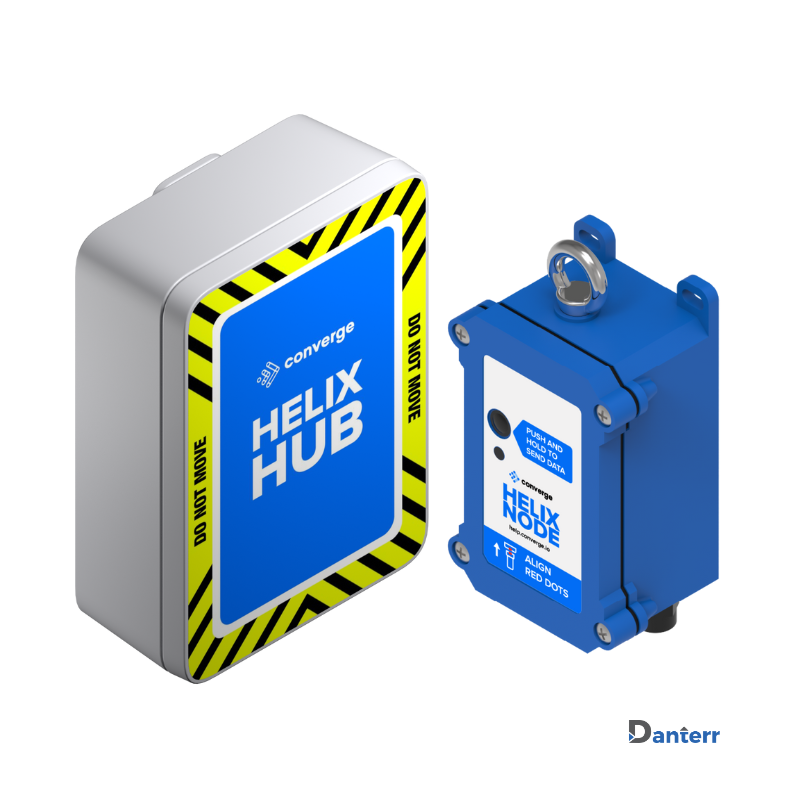

Converge Helix surface-mounted reusable concrete sensor with multi-probe tail

Converge Helix® – Reusable Wireless Concrete Monitoring System

Converge Helix® is a next-generation wireless and reusable concrete monitoring system that delivers real-time strength and temperature data from the surface of concrete pours. Ideal for flexible deployment across large job sites, Helix is non-embedded and can be repositioned or reused across multiple pours, saving both time and cost.

Connected to the ConcreteDNA® platform, Helix transmits live data using the Helix Hub over distances of up to 2km, eliminating the need for destructive testing or lab delays. It’s the smart choice for slab pours, infrastructure projects, and any concrete application requiring fast, reliable insights across multiple zones.

Download Converge Helix Brochure
Download Technical Data Sheet

SKU: N/A Categories: ,

Specifications

Product Code Description
134721 Helix Hub (Wi-Fi & Cellular) – Hardware
133845 Helix Hub – Software Annually
132110 Helix Node – Hardware
133038 Helix Node – Software Annually
135849 Single-Probe Thermal Tail (SPTT) – 1m Long
135850 Single-Probe Thermal Tail (SPTT) – 3m Long
135851 Single-Probe Thermal Tail (SPTT) – 10m Long
135852 Single-Probe Thermal Tail (SPTT) – 15m Long
135853 Multi-Probe Thermal Tail (2 Probe) (MPTT) – 2m Long
135854 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 4m Long
135855 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 4.5m Long
135856 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 6m Long
135857 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 10m Long
135858 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 8m Long
135859 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 5m Long
135860 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 12m Long
132115 Calibration Analysis & Report for 1 Mix (required for strength monitoring, not for thermal only)

Key Features & Benefits

  • Reusable Sensor System – Ideal for rotating between multiple slabs or zones
  • Surface-Mounted Flexibility – No need for embedding; install post-pour
  • Long-Range Connectivity – Use with Helix Hub to monitor pours up to 2km away
  • Multi-Probe Monitoring – Track several points at once with thermal tail attachment
  • Real-Time Reporting – Live temperature and strength data via ConcreteDNA® platform
  • Reduces Testing Delays – Cuts out destructive testing and wait times for labs
  • Cost-Efficient for Large Projects – Optimise resources by reusing sensors across the site
