Converge Signal Long Range®

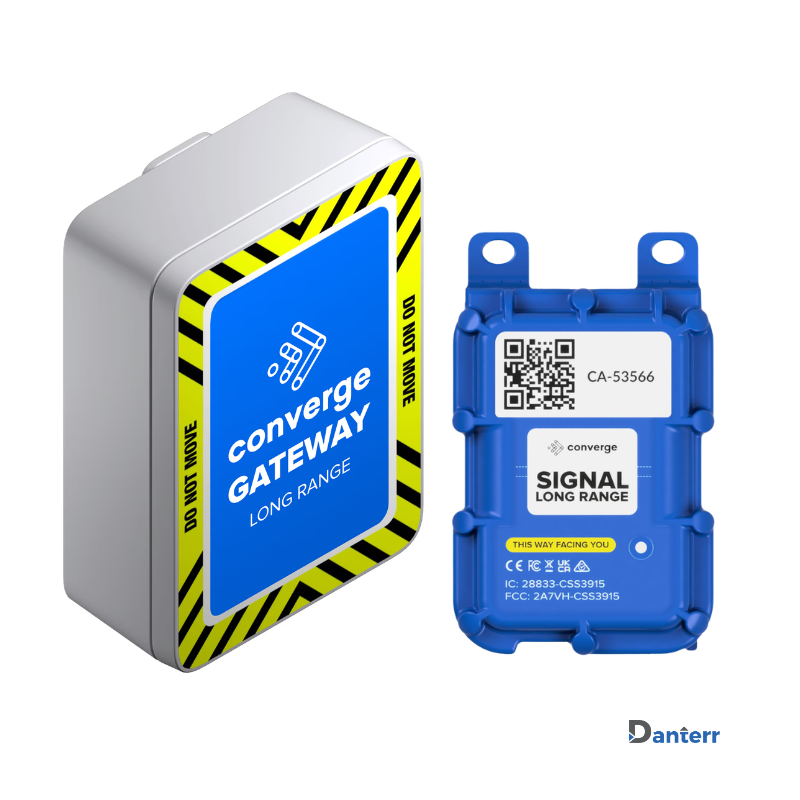

Converge Gateway and Signal Long Range system for wireless concrete maturity monitoring and data collection.

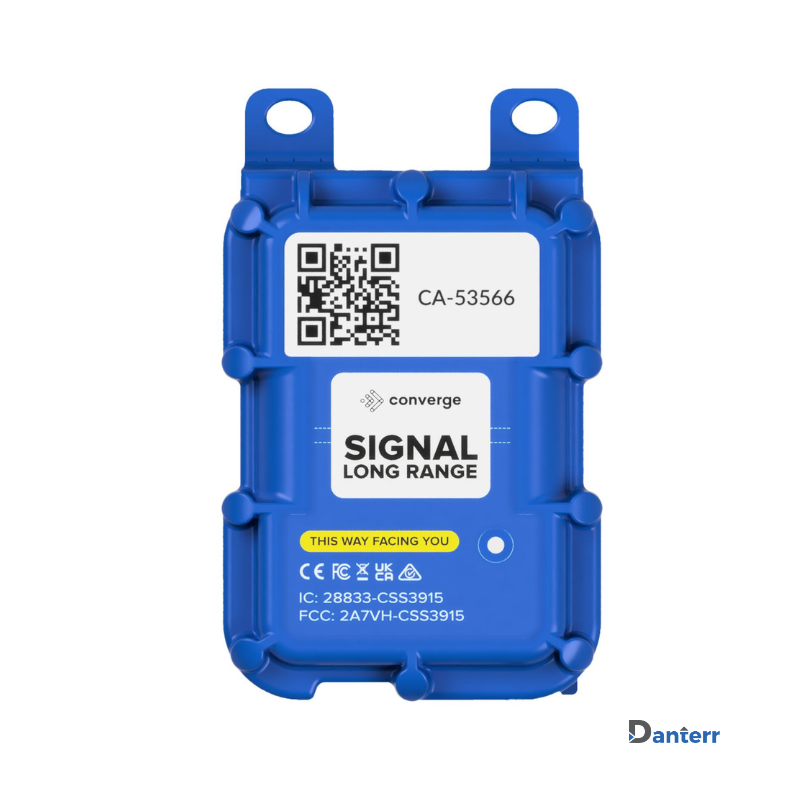

Converge Signal Long Range device used for concrete maturity monitoring and real-time concrete strength tracking.

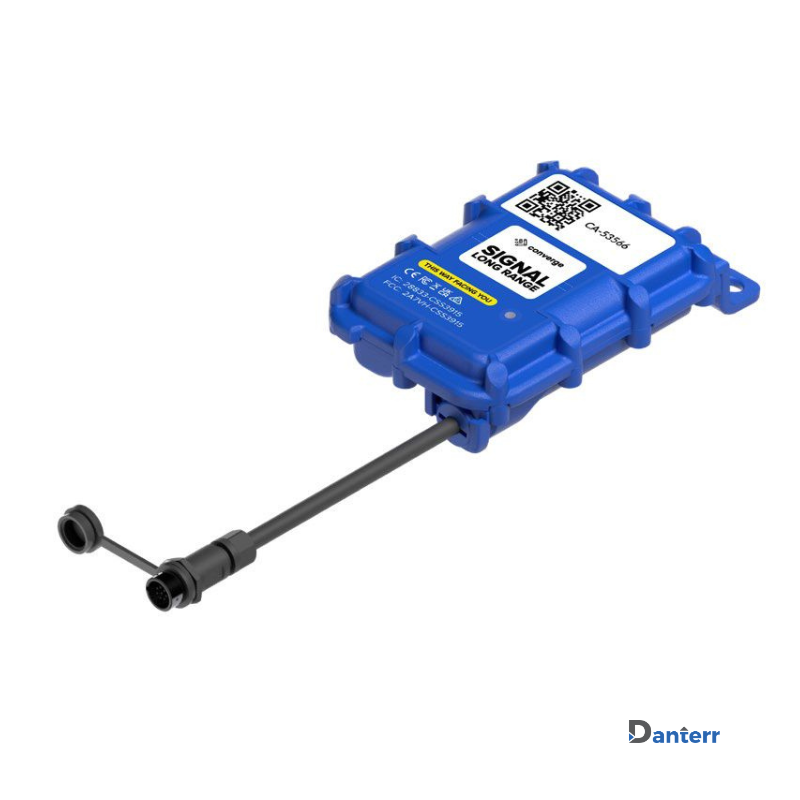

Converge Signal Long Range® - Image 3

Converge Signal Long Range®

Converge Signal Long Range® is a fully embedded concrete maturity monitoring solution designed for large infrastructure, commercial, and civil construction projects. Combining long-range wireless communication with real-time data collection, it enables continuous concrete monitoring of temperature and strength development across expansive sites without the need for manual readings or frequent site visits.

Using embedded concrete maturity sensors and high-accuracy thermal probes, Signal Long Range® transmits data up to 300 metres (1,000 feet) to a Converge Gateway®, providing coverage across up to 29 hectares from a single location. By automating data collection and delivering real-time curing insights, it helps contractors make informed decisions around formwork stripping, post-tensioning, load application, and project scheduling.

Download Converge Signal Long Range® Brochure
Download Converge Signal Long Range® TDS

SKU: N/A Categories: ,

Specifications

Code Description
140288 Signal Long Range CE
135849 Single-Probe Thermal Tail (SPTT) – 1m Long
135850 Single-Probe Thermal Tail (SPTT) – 3m Long
135851 Single-Probe Thermal Tail (SPTT) – 10m Long
135852 Single-Probe Thermal Tail (SPTT) – 15m Long
135853 Multi-Probe Thermal Tail (2 Probe) (MPTT) – 2m Long
135854 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 4m Long
135855 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 4.5m Long
135856 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 6m Long
135857 Multi-Probe Thermal Tail (2 Probe) (MPTT2) – 10m Long
135858 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 8m Long
135859 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 5m Long
135860 Multi-Probe Thermal Tail (3 Probe) (MPTT2) – 12m Long

Features and Benefits

  • Long-Range Site Coverage – Provides wireless monitoring up to 300 metres with coverage across up to 29 hectares from a single gateway.
  • Real-Time Concrete Strength Insights – Tracks temperature and maturity data in real time to support informed construction decisions.
  • Supports Large Infrastructure Projects – Designed for mass concrete monitoring across infrastructure, civil, and commercial projects.
  • Fully Embedded Design – Eliminates exposed cables and reduces the risk of damage during construction.
  • Automated Data Collection – Automatically captures sensor data, reducing manual inspections and site visits.
  • High-Accuracy Monitoring – Delivers ±0.5°C accuracy for reliable concrete maturity monitoring and compliance.
  • Flexible Monitoring Configuration – Single and multi-probe options provide multiple measurement points from one device.
  • Local and Remote Access – Enables smartphone data access on site and continuous remote monitoring across the project.
