What are Ferrules?
Ferrules are cylindrical inserts embedded in concrete during casting or precasting to provide reliable anchorage points for fixtures, lifting, or load-bearing elements. This makes ferrules a vital component in ensuring structural integrity and safety during and after construction.
The primary purpose of ferrules is to deliver dependable connection points within concrete that can endure heavy loads, vibrations, and environmental stresses. At Danterr, we pride ourselves on delivering high-quality ferrules that comply with Australian Standards, guaranteeing strength, sustainability, and long-term performance.
Types of Ferrules
Ferrules are categorised based on their design and application, not solely by their material. Here are the primary types:
- Footed Ferrules
- Designed with a larger base (foot) to enhance pull-out resistance and load transfer.
- Examples include Qwikfoot, Hex Foot, and Elephant Foot ferrules.
- Solid Ferrules
- Made from solid steel, offering greater strength for higher load-bearing capacity.
- Tube Ferrules
- Manufactured from hollow steel tubes, often bent for increased grip and anchorage.
- Coarse-Threaded Ferrules
- Designed to accept a coil bolt, simplifying installation and reducing thread clogging.
- Duo Ferrules
- Feature two separate threads for enhanced connection versatility.
- Anchor Ferrules
- Specifically designed for anchorage within concrete, creating secure connection points for structural elements.
Material Options
While ferrules are classified by their design, they are available in different materials for specific applications:
- Zinc-Plated Steel: Offers basic corrosion resistance, suitable for indoor environments.
- Hot-Dip Galvanised Steel: Provides enhanced protection against corrosion, ideal for outdoor projects.
- Stainless Steel: Superior corrosion resistance, perfect for marine and heavy industrial applications.
Coating Options
Ferrules can be further protected with coatings to increase durability:
- Zinc Plating: A common coating to protect against corrosion.
- Hot-Dip Galvanisation: Provides a more durable and long-lasting protective layer.
Your Next Project, Simplified with Danterr!
Enter your email to explore our top-quality construction solutions. We’re here to support your project’s needs with innovative, sustainable products.
Catalogue Form
Danterr’s Range of Ferrules
Danterr offers a wide range of high-quality ferrules designed to meet various construction demands, including Qwikfoot Ferrules and Hex Foot Ferrules.
Qwikfoot Ferrules
Qwikfoot Ferrules are engineered for high-strength anchorage in concrete applications. Designed for both permanent structural fixtures and temporary braces or strongbacks, these inserts are compliant with Australian Standards AS 3850:2015 and AS 3600. Built with a large diameter foot, they develop full anchorage without the need for additional crossbars, ensuring optimal stability during concrete pouring and vibration.
Technical Information:
- Sizes Available: M10, M12, M16, M20, M24
- Material Options: Zinc, Galvanised, Stainless Steel
- Compliance: Meets AS 3850:2015 and AS 3600 for structural integrity and safety.
- Load Capacity: Designed for Grade 4.6 and 8.8 bolts, following capacity reduction factors.
- Connection Options:
- Permanent Structural Fixtures: Utilises Grade 4.6 or 8.8 bolts for high-strength anchorage.
- Temporary Braces and Strongbacks: Optimised for M20 Grade 4.6 bolts or Unicoil bolts.
- Factor of Safety (FoS): Not less than 2.25 as per AS 3850:2015.
- Anchorage Design:
- Full strength for puddle-in applications
- Cross-holed for bar tie-in to reinforcing steel during concrete pouring
- No crossbar required due to large foot design
Testing and Quality Assurance:
Qwikfoot Ferrules are rigorously tested for:
- Load-bearing Capacity: Verified against Grade 4.6 and 8.8 bolt specifications.
- Corrosion Resistance: Zinc, galvanised, and stainless steel finishes are tested for durability in various environments.
- Concrete Anchorage Strength: Meets full anchorage capacity without crossbars, ensuring compliance with AS 3850:2015 and AS 3600.
- Vibration Stability: Designed to withstand movement and vibration during concrete pours.
- Quality Assurance: All testing aligns with Australian Standards for reliability and safety.
Installation Methods
Hex Foot Ferrules
Hex Foot Ferrules are engineered with a hexagonal base to prevent rotation during concrete pours and enhance load distribution. These medium to heavy-duty cast-in ferrules are ideal for structural connections, temporary bracing points for precast and tilt-up panels, and panel facade and curtain wall fixings. The hexagonal design ensures anti-vibration stability, making them reliable for high-stress applications.
Technical Information:
- Sizes Available: M12, M16, M20
- Material Options: Hot Dip Galvanised, 316 Stainless Steel
- Compliance: Meets Australian Standards AS3850.1:2015
- Load Capacity:
- Optimised for 20 MPa, 32 MPa, and 40 MPa concrete strength.
- Designed to handle both shear and tension forces reliably across M12, M16, and M20 sizes.
Testing and Quality Assurance:
Hex Foot Ferrules undergo strict testing to meet:
- Load-bearing Capacity: Verified for shear and tension across M12, M16, and M20 sizes.
- Corrosion Resistance: Tested for durability in galvanised and stainless steel finishes.
- Concrete Anchorage Strength: Proven to handle high-stress applications without rotation or slippage.
- Compliance with AS3850.1:2015 Ensures structural integrity and safety in precast and tilt-up projects.
- NATA Laboratory Tested: All tests are performed in Australia by NATA-accredited laboratories.

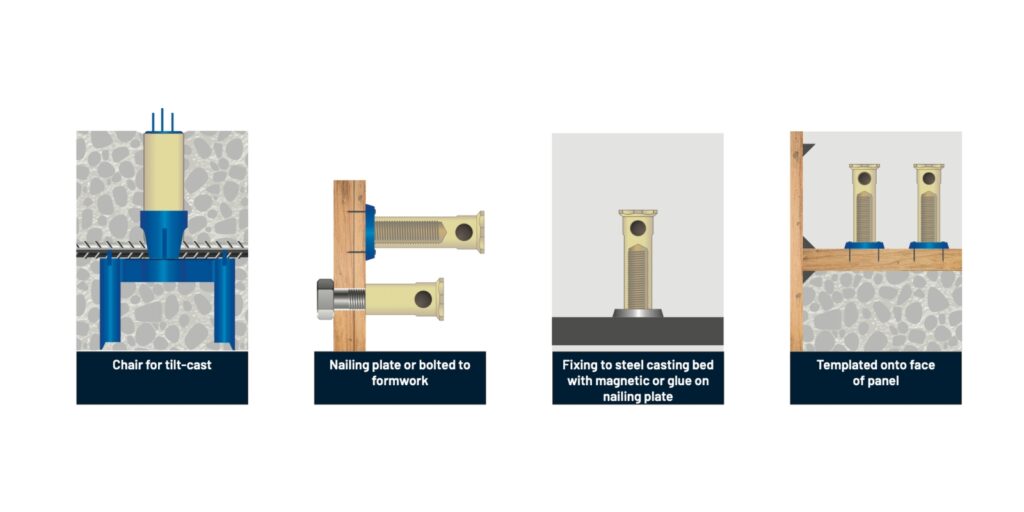

Installation Methods:
Applications of Ferrules in Concrete Construction
Danterr’s ferrules are indispensable in various construction projects. Here are some common applications:
Precast Concrete
- Embedded during the precast phase to create lifting and reinforcing points.
- Facilitates easier transportation and assembly of concrete panels.
Tilt-up Panels
- Critical for providing anchorage during the lifting and bracing of large concrete panels.
- Ensures structural integrity during the erection process.
Infrastructure Projects
- Used in bridges, tunnels, and large-scale buildings for secure load distribution.
- Enhances the strength and stability of concrete elements.
Marine Constructions
- Stainless steel ferrules are particularly useful in marine applications where corrosion resistance is crucial.
Concrete Reinforcement Accessories
In addition to ferrules, Danterr also provides a comprehensive range of concrete reinforcement accessories designed to enhance stability, precision, and structural integrity across various construction applications:
Ferrule Nailing Plates
Danterr offers Ferrule Nailing Plates engineered for accurate and secure placement of ferrules in precast and tilt-up concrete formwork. These plates screw into ferrules and mechanically fasten to timber formwork, preventing movement during pours while forming a clean recess for post-pour connections. They are reusable, durable, and compliant with Australian standards, enhancing speed and precision on construction sites.
Precast Chairs
We provide a variety of Precast Chairs, including:
- Top Deck Chairs: Support top mesh and reinforcing bars in suspended decks and thick precast panels, featuring a square base for stability on formwork slabs.
- Bottom Deck Chairs: Designed to support reinforcement bars in concrete slab applications, ensuring the correct cover between reinforcement layers and formwork.
- Combination SOG Bar Chairs: Ideal for slab-on-ground projects, offering dual-height options for increased application flexibility.
- Fast Clip Bar Chairs: Facilitate quick installation and secure positioning of reinforcement bars, enhancing efficiency on-site.
- Wire Bar Chairs: Provide robust support for reinforcing mesh and bars, ensuring consistent concrete cover and structural integrity.
Steel Formwork Attachments
Danterr supplies various Steel Formwork Attachments to facilitate secure attachment to steel casting beds during precasting. These include:
- Screedmaster Chairs: Fully adjustable multipurpose chairs manufactured from recycled plastic, designed to regulate concrete finished levels and hold suspended formwork for setdowns, rebates, and steps in slabs.
- Deck Rail Chairs: Continuous spacers providing strong and stable reinforcement support in formwork applications, ensuring consistent concrete cover while minimising exposure.
- Stremaform: A high-performance formwork solution offering support for various concrete formwork applications.
These products are integral to ensuring precision, stability, and efficiency in concrete construction projects.
Benefits of Using Danterr’s Ferrules in Construction
Enhanced Structural Integrity: Our ferrules provide strong anchorage points that increase the durability of concrete.
- Improved Load Distribution: Especially with Hex Foot and Qwikfoot designs that spread the load efficiently.
- Corrosion Resistance: Galvanised and stainless steel options prevent rust and degradation.
- Versatility: Suitable for a wide range of concrete applications, including precast, tilt-up, and marine environments.
- Compliance with Standards: Danterr’s high-quality ferrules meet Australian Standards AS3850.1:2015, ensuring safety and reliability.
- Sustainability Focus: Engineered with a commitment to environmentally responsible practices.
Ferrules are a foundational component in modern concrete construction, enhancing the strength, durability, and safety of structures. By selecting the right type of ferrule for your project—whether it’s Footed, Solid, Tube, or Anchor—you ensure long-lasting stability and compliance with industry standards.
For high-quality ferrules that meet Australian Standards and deliver exceptional performance, trust Danterr to supply the best solutions for your construction needs. Our products are designed with precision, tested for reliability, and delivered with a commitment to sustainability.
📞 Get in Touch: Free Call 1800 262 383 or email [email protected] for more information.
Frequently Asked Questions (FAQs)
A ferrule is a cylindrical insert typically made from metal, designed to reinforce or secure components, especially in concrete applications.
The main types of ferrules include Footed Ferrules, Solid Ferrules, Tube Ferrules, Coarse Threaded Ferrules, Duo Ferrules, and Anchor Ferrules. These are further customized with different materials such as Zinc-Plated, Hot-Dip Galvanized, and Stainless Steel.
In construction, ferrules are embedded in concrete to create secure points for lifting, reinforcing, and structural stability during pouring and curing.
Selection depends on the application, load requirements, and environmental conditions. Danterr provides a range of sizes from M10 to M24 to meet specific project needs.
Ferrules are installed using different methods such as Nailing Plates, Precast Chairs, and Steel Formwork Attachments. The method chosen depends on the construction application.
Yes, all Danterr Ferrules are compliant with AS3850.1:2015 and tested in NATA-accredited laboratories.
Qwikfoot Ferrules are designed for high-strength anchorage with a wide foot design, while Hex Foot Ferrules are engineered for optimal load distribution with a hexagonal base.
Ferrules provide reliable anchorage, structural stability, and prevent movement during concrete pouring and vibration.
Generally, ferrules are designed for single-use as their integrity may be compromised after concrete curing.
Ferrule fittings are widely used in Precast Concrete, Tilt-up Panels, and Structural Connections for securing reinforcement and load-bearing applications.
