Hydrotite: Reliable Hydrophilic Waterstop Protection for Concrete Construction Joints
Blog Archives
Blog Categories
Construction joints occur where separate concrete pours meet. While they are an intentional part of concrete construction, they interrupt the continuity of the concrete and require appropriate waterproofing where a structure must retain or exclude water. If they’re not properly sealed, water can migrate through the joint, leading to reinforcement corrosion, concrete deterioration and costly remediation.
Hydrophilic waterstops are designed to help address this by expanding when exposed to water, creating a pressure seal that helps limit water ingress through the joint. They’re widely specified at construction joints in basements, tunnels, retaining walls, water-retaining structures and other concrete applications where protection against water ingress is required.
This guide explains how hydrophilic waterstops work, when they should be used, and why Hydrotite waterstop has become a trusted waterproofing solution for commercial, civil and infrastructure projects across Australia.
Why Construction Joints Need Waterproofing
Concrete itself is highly durable, but construction joints naturally create potential pathways for water ingress. Construction joints interrupt the continuity of cast concrete and can provide a pathway for water where the joint is exposed to groundwater or retained water. Appropriate joint detailing and waterproofing are therefore important where the structure must retain or exclude water.
Without effective joint waterproofing, water infiltration can lead to:
- Reinforcement corrosion
- Concrete deterioration
- Damp internal spaces
- Increased maintenance costs
- Reduced service life of the structure
What Is Hydrotite?
Hydrotite is a hydrophilic profile waterstop designed to help waterproof low-movement concrete construction joints. Installed within the joint before concrete placement, it becomes an integral part of the structure’s waterproofing system.
Rather than acting as a surface waterproofing product, Hydrotite is designed to help reduce water ingress through concrete construction joints as part of the structure’s waterproofing system.
How Hydrotite Works
Hydrotite is a co-extruded synthetic rubber hydrophilic waterstop designed for waterproofing concrete construction joints.

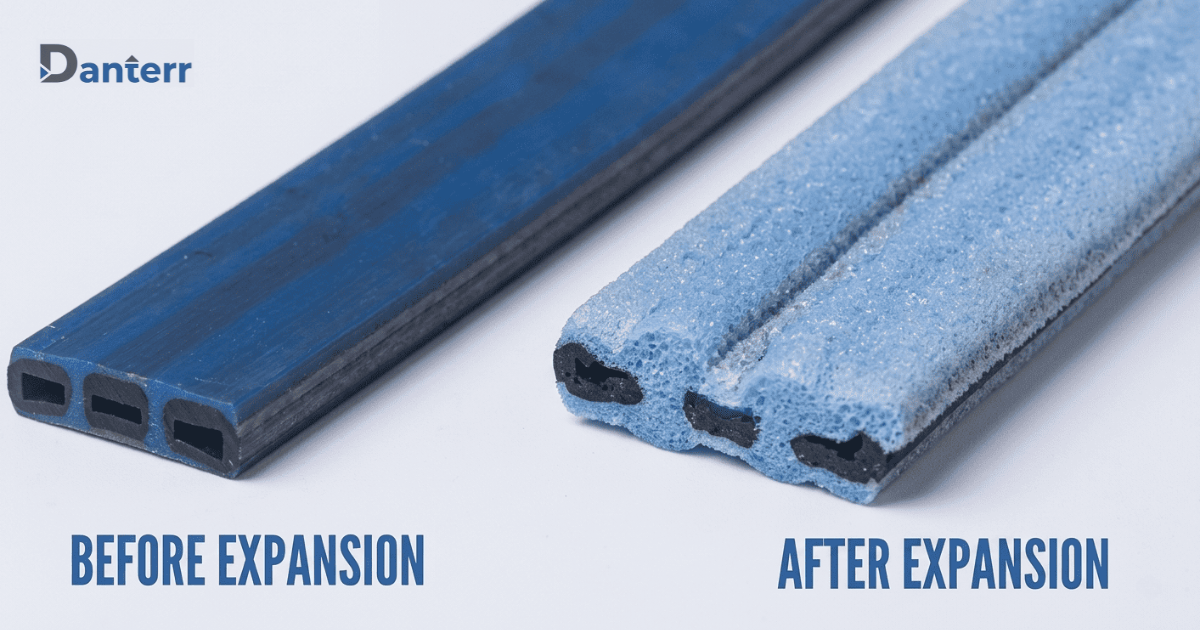

Hydrotite expands in a controlled manner when exposed to moisture, creating a pressure seal within the concrete joint. Its co-extruded profile directs expansion across the joint to help limit water ingress.
Hydrotite is intended for low-movement joints and is generally not suitable for expansion joints.
These characteristics make Hydrotite suitable for low-movement construction joints across a range of commercial, civil and water infrastructure applications.
Key Benefits of Hydrotite Waterstop
Hydrotite combines several features that support reliable waterproofing performance across a wide range of concrete structures.
- Controlled Expansion – Hydrotite expands in a controlled manner when exposed to moisture, creating pressure against the surrounding concrete to help seal the construction joint.
- Expansion Delay Coating – The delay coating helps reduce moisture absorption from green concrete and premature expansion if the installed waterstop is temporarily exposed to water before the second pour.
- Compression Seal on Water Exposure – When exposed to water, Hydrotite expands within the joint to create an effective compression seal, helping limit water passage through the construction joint.
- Repeated Wet-and-Dry Performance – Hydrotite can return toward its original size when moisture is no longer present and re-expand when exposed to water again. Repeated wet-and-dry cycling does not affect the functioning of the waterstop.
- Durable Synthetic Rubber Construction – Hydrotite uses a co-extruded synthetic rubber construction that combines hydrophilic behaviour with the flexibility of the profile.

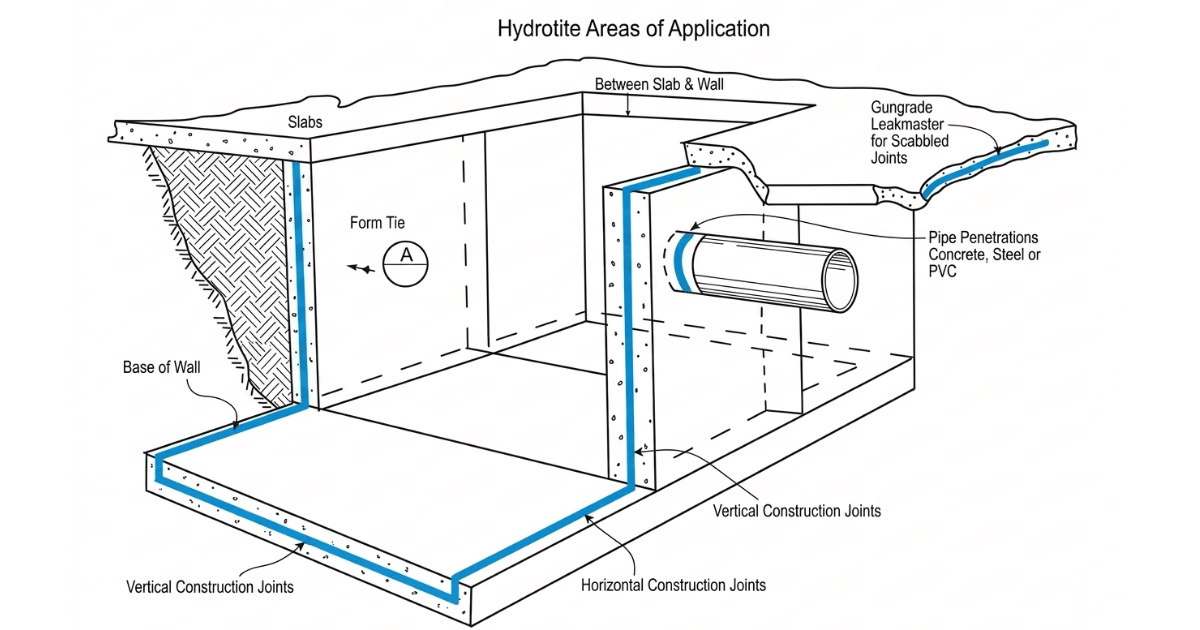

Where Is Hydrotite Used?
Hydrotite is commonly specified for low-movement construction joints in below-ground and water-retaining concrete structures where protection against water ingress is required.
Typical applications include:
- Basements and underground car parks
- Retaining walls
- Water treatment plants
- Reservoirs and tanks
- Tunnels and shafts
- Lift pits
- Bridge substructures
- Civil infrastructure projects
When Hydrotite May not be the Best Choice
Hydrotite is specifically designed for low-movement concrete construction joints. Other joint types and waterproofing details may require different systems.
Hydrotite may not be the most appropriate solution when:
- Expansion joints require significant movement – Expansion joints require waterproofing systems designed to accommodate the expected joint movement.
- Cracks require repair or remediation – Hydrotite is not intended for crack repair. Cracks should be assessed to determine their cause, movement and condition before selecting an appropriate repair or waterproofing method.
- Form tie penetrations need sealing – Form tie holes require waterproofing systems specifically designed for compatible form tie assemblies, such as Form Tie Plugs or Form Tie Rings & Connectors.
- Irregular pipe penetrations or complex concrete details are present – Where preformed waterstops are difficult to install, a gun-grade hydrophilic waterstop such as Leakmaster® may provide a more suitable waterproofing solution.
- Large below-ground wall surfaces require external protection – Foundation walls exposed to groundwater typically require waterproofing membranes and, where appropriate, drainage systems as part of a broader waterproofing design
Choosing the Right Waterstop System
No single waterstop is suitable for every project. The most appropriate solution depends on the joint design, expected movement and level of water exposure.
Before selecting a waterstop, consider:
- Will the joint be exposed to groundwater?
- Is the structure below ground or water-retaining?
- How much movement is expected within the joint?
- Will the waterstop be cast directly into concrete?
- What are the project’s specification, compliance and installation requirements?
Answering these questions helps determine whether a hydrophilic waterstop is the most suitable waterproofing solution.

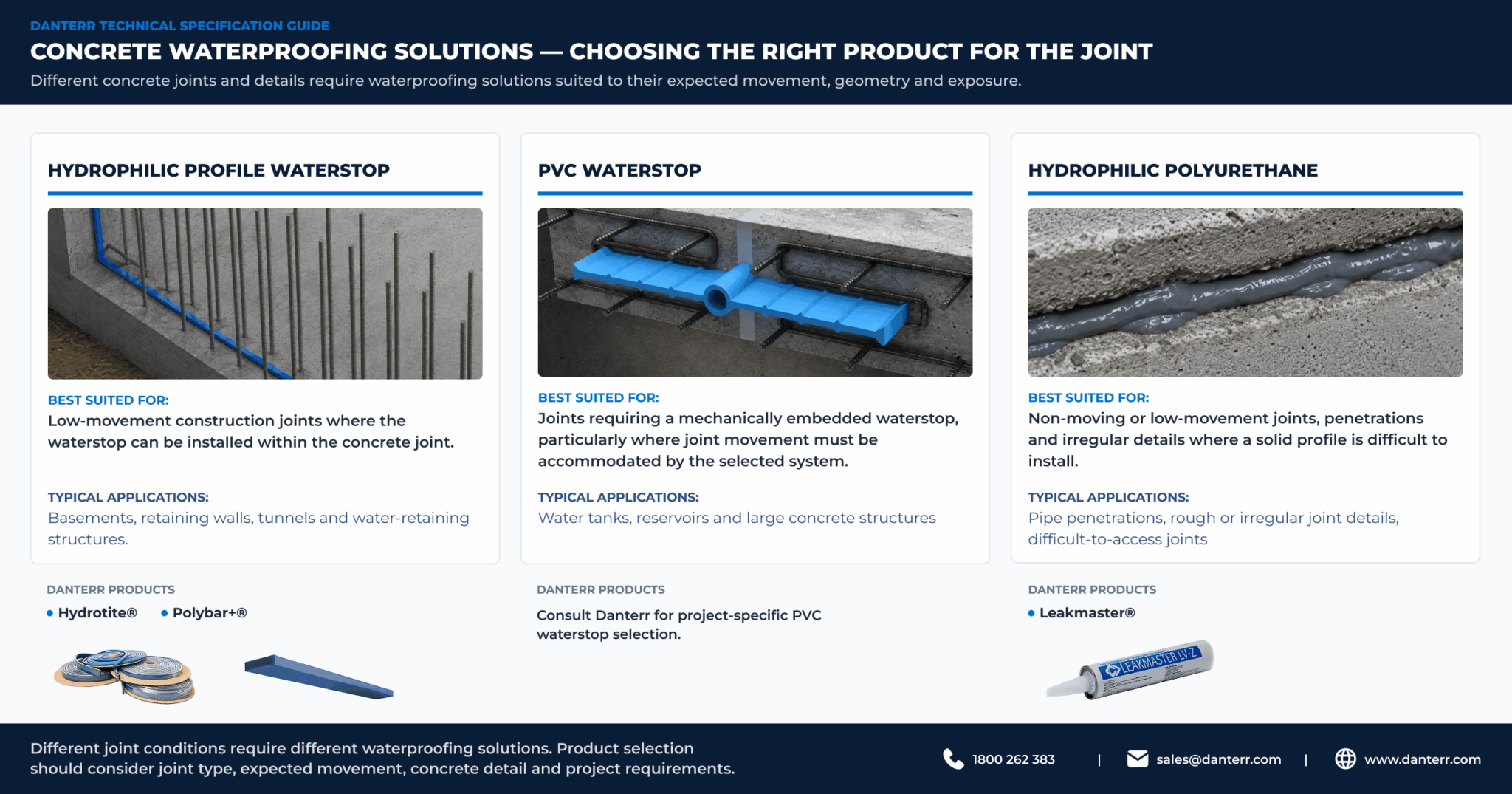

Choosing the Right Waterproofing Solution for Construction Joints
No single waterproofing solution is suitable for every construction joint. The most appropriate system depends on factors such as joint type, expected movement, groundwater exposure and construction methodology. Understanding the role of each waterproofing category helps ensure the right solution is specified before selecting an individual product.
Each waterproofing category performs a different role within a broader waterproofing strategy. Selecting the right approach starts with understanding how water is likely to enter the structure and the level of movement expected within the joint.
Hydrophilic Profile Waterstops
Hydrophilic profile waterstops expand when exposed to water, creating continuous contact pressure against the surrounding concrete to help limit water ingress through construction joints. They are commonly specified for below-ground structures and water-retaining infrastructure where long-term waterproofing is required.
Danterr supplies two hydrophilic profile waterstop solutions:
- Hydrotite – A co-extruded synthetic rubber hydrophilic waterstop with controlled expansion and a delay coating, designed for low-movement concrete construction joints.
- Polybar+ – A standard water-swellable sealing bar designed for concrete construction joints.
Both products are intended for construction-joint waterproofing, with selection depending on the project detail, specification and installation requirements.
PVC Waterstops
PVC waterstops are mechanically embedded within concrete to form a physical barrier across construction and expansion joints. They are commonly used where significant joint movement is expected and are widely specified for large concrete structures such as reservoirs, treatment plants and civil infrastructure.
Hydrotite is generally not suitable for expansion joints, where a waterstop designed for the expected movement should be specified.
Hydrophilic Polyurethane Waterstops
Hydrophilic polyurethane waterstops can be used for selected non-moving or low-movement joints, service penetrations and irregular concrete details where a conventional preformed waterstop may be difficult to install. Their gun-applied format allows the material to conform to rough or uneven surfaces and complex details.
Within Danterr’s range, Leakmaster® is a gun-applied water-swellable polyurethane waterstop paste for non-moving or low-movement joints, rough or uneven surfaces and selected pipe-penetration details where a conventional solid waterstop may be difficult to install. It can also be used to bond Hydrotite to rough concrete where specified.
Your Next Project, Simplified with Danterr!
Enter your email to explore our top-quality construction solutions. We’re here to support your project’s needs with innovative, sustainable products.
Catalogue Form
Proven Across Australian Infrastructure Projects
Hydrotite has been specified on a range of commercial, transport and water infrastructure projects where long-term waterproofing of construction joints is required. Rather than serving as a standalone waterproofing system, Hydrotite forms part of the overall joint waterproofing strategy by helping seal non-moving construction joints exposed to groundwater and moisture.
This includes:
- Upper South Creek Advanced Water Recycling Centre – Hydrotite was supplied as part of the construction joint waterproofing system to help seal concrete joints within critical water infrastructure.
- Sydney Metro – Line-Wide Tunnel Fit-Out – Hydrotite waterstop was specified for waterproofing construction joints within sections of the tunnel fit-out where long-term water ingress protection was required.
- Sydney Light Rail – Hydrotite waterstop was used within concrete construction joints to support waterproofing across selected transport infrastructure elements.
These projects demonstrate Hydrotite’s suitability for protecting construction joints in some of Australia’s most complex infrastructure environments.
Conclusion
Effective waterproofing requires appropriate treatment of construction joints and other potential water-ingress points within a concrete structure. Selecting a waterstop suited to the joint type, expected movement and exposure conditions can help reduce water ingress and future remedial requirements.
Hydrophilic waterstops respond to moisture by expanding within the joint to help limit water ingress. With controlled expansion, durable synthetic rubber construction and an expansion delay coating, Hydrotite provides a hydrophilic waterstop option for low-movement construction joints across commercial, civil and water infrastructure applications.
If you’re planning a waterproofing system, selecting the right waterstop should form part of a broader waterproofing strategy that considers all potential pathways for water ingress.
Speak With Danterr
Every waterproofing project has unique site conditions, joint details and performance requirements. Whether you’re designing a new structure or selecting products for an existing project, Danterr’s technical team can help identify the most appropriate waterproofing solution.
Explore our range of Hydrotite hydrophilic waterstops or contact us for product selection advice and technical support tailored to your project.
Frequently Asked Questions:
A hydrophilic waterstop is used to help limit water passage through concrete construction joints. When exposed to water, the material expands and creates sealing pressure against the surrounding concrete.
Hydrophilic waterstops are typically installed in construction joints within basements, retaining walls, water treatment plants, tunnels, lift pits, reservoirs, foundations and civil infrastructure where construction joints require protection against groundwater or retained water ingress.
Hydrotite is manufactured from hydrophilic synthetic rubber that expands when it comes into contact with water. This controlled expansion creates sealing pressure within low-movement concrete construction joints to help limit water ingress.
The expansion delay coating helps reduce moisture absorption from green concrete and premature expansion if the installed waterstop is temporarily exposed to water before the second pour.
Hydrotite is intended primarily for low-movement construction joints and is generally not suitable for expansion joints. Where greater joint movement is expected, a waterstop system designed for that movement should be specified in accordance with the project requirements.
Yes. The applicable Hydrotite product documentation states compliance with AS/NZS 4020 for products used in contact with drinking water. Suitability should still be confirmed against the specified Hydrotite profile, current technical documentation and project requirements.
Hydrophilic waterstops are typically specified for compatible construction joints exposed to groundwater or retained water, particularly in below-ground structures, tunnels, retaining walls and water infrastructure projects.
