Waterproofing Concrete Foundations: A Comprehensive Guide for Building Professionals

Concrete foundations can be exposed to groundwater, surface moisture and changing environmental conditions throughout their service life. While concrete is a durable construction material, it is not inherently waterproof. Without appropriate waterproofing, water can penetrate the structure and contribute to corrosion, concrete deterioration and costly repairs.

Effective foundation waterproofing starts with understanding how water reaches the structure, where it is most likely to enter, and which areas require protection. By identifying these factors early, project teams can select waterproofing systems that suit the structure’s exposure conditions, construction details and long-term performance requirements.

How Water Enters Concrete Foundations

Water can reach concrete foundations through several mechanisms. Understanding how water moves helps explain why appropriate waterproofing and drainage are essential for below-ground structures.

• Hydrostatic Pressure – Groundwater exerts pressure against below-ground walls and slabs. Where cracks, joints or other openings exist, this pressure can force water through the concrete.
• Capillary Absorption – Concrete contains interconnected pores that can draw moisture into the structure through capillary action. This can occur even when there is no visible water leak.
• Water Seepage Through Cracks and Voids – Water can migrate through cracks, honeycombing and other voids within the concrete. These discontinuities provide direct pathways for moisture to enter the structure.
• Surface Water and Poor Drainage – Rainfall, runoff and inadequate site drainage can increase water exposure around foundations. Over time, this can contribute to seepage and increase hydrostatic pressure against below-ground concrete.

Common Water Ingress Points in Concrete Foundations

Once the water exposure is understood, the next step is identifying where water is most likely to enter the structure. The following areas commonly require waterproofing detailing to help reduce the risk of water ingress.

• Construction Joints – Construction joints form where separate concrete pours meet. Without appropriate waterproofing, these interfaces can become pathways for water migration. Low-movement construction joints are commonly detailed with hydrophilic waterstops, while expansion joints require movement-capable waterproofing systems and joint sealants.
• Form Tie Penetrations – Removable formwork systems leave penetrations through concrete walls that require permanent sealing after construction. If left untreated, these openings can allow groundwater to pass through below-ground concrete structures. The waterproofing solution should be selected to suit the form tie system and project requirements.
• Pipe and Service Penetrations – Pipes, conduits and service penetrations interrupt the continuity of the concrete and require careful waterproofing. Gaps around these details can allow water ingress if they are not properly sealed. Irregular penetrations require a waterproofing solution suited to the penetration geometry, substrate condition, expected movement and project requirements.
• Concrete Cracks – Concrete cracks may develop due to shrinkage, thermal movement, settlement, or structural loading. Where cracks extend through the concrete, they can become direct pathways for water. Before selecting a waterproofing solution, the cause, movement and condition of the crack should be assessed to determine the appropriate repair method.
• Concrete Defects and Voids – Honeycombing, inadequate compaction and other construction defects can create unintended pathways for water through otherwise continuous concrete. Identifying and repairing these defects before waterproofing helps improve the overall performance of the waterproofing system.
• Wall-to-Slab and Other Concrete Interfaces – Wall-to-slab junctions and similar concrete interfaces combine changes in geometry with construction joints and other waterproofing details. Where these interfaces are exposed to groundwater, waterproofing should consider joint continuity, penetrations, surface protection and drainage as part of the overall system design.

Where Foundation Waterproofing Is Typically Required

Foundation waterproofing is most important where concrete is exposed to groundwater, retained water or persistent moisture. The required system depends on the structure, its exposure and the details that could allow water to enter.

Common applications include:

• Basements — External walls and slabs may be exposed to groundwater and hydrostatic pressure.
• Retaining walls — Soil moisture and groundwater can remain in contact with the concrete for long periods.
• Lift and service pits — Below-ground pits can collect water and are often difficult to access after construction.
• Tunnels and underground structures — Joints, penetrations and large concrete surfaces require coordinated waterproofing details.
• Tanks and water-retaining structures — Construction joints and penetrations must be detailed to limit water loss or ingress.
• Bridge abutments — Concrete may be exposed to soil moisture, drainage water and changing environmental conditions.
• Commercial podiums and below-ground areas — Waterproofing may be required across walls, slabs, interfaces and service penetrations.

The application alone does not determine the solution. Groundwater conditions, water pressure, movement and accessibility must also be considered.

Choosing the Right Waterproofing Approach

Selecting the right waterproofing system starts with understanding the structure, its exposure conditions and the concrete detail being protected. Before specifying a solution, consider the following factors.

• Water Source and Exposure – Identify whether the structure will be exposed to groundwater, surface water, retained water or intermittent moisture, as the type and duration of exposure influence the level of waterproofing required.
• Expected Water Pressure – Determine whether hydrostatic pressure may act against the structure, as water under pressure requires waterproofing systems designed to resist sustained water ingress.
• Concrete Detail – Match the waterproofing solution to the specific detail being protected, such as a construction joint, form tie penetration, pipe penetration, foundation wall or concrete interface.
• Expected Movement – Confirm whether the detail is subject to movement, as low-movement construction joints and movement joints require different waterproofing systems.
• Accessibility After Construction – Consider whether the waterproofing detail will become inaccessible after concrete placement, backfilling or finishing, as these elements may be difficult or costly to access for remedial work later.
• Project Requirements – Ensure the selected waterproofing system aligns with the project specification, design life, applicable authority requirements and the manufacturer’s installation guidance.

Waterproofing Solutions by Application

Different water-ingress points require different waterproofing solutions. The most effective approach is to match the system to the concrete detail rather than selecting one product for every application.

Construction Joint Waterproofing

Construction joints form where separate concrete pours meet. These interfaces require deliberate detailing to help limit water passage through the joint.

For low-movement construction joints, hydrophilic waterstops may be suitable.

Danterr solutions

• Hydrotite — Hydrophilic profile waterstop designed for waterproofing low-movement concrete construction joints.
• Polybar+ — Self-expanding hydrophilic sealing bar designed for waterproofing concrete construction joints.

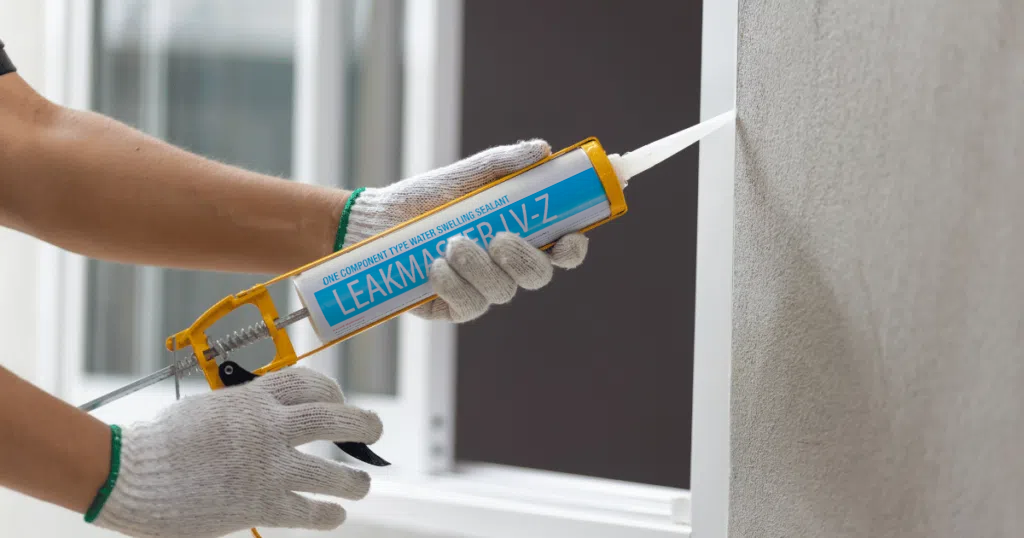

• Leakmaster — Gun-grade hydrophilic polyurethane waterstop for rough joints, irregular details and locations where a preformed profile is difficult to install. It may also be used to bond Hydrotite® where supported by the technical documentation.

Hydrophilic waterstops should not be used as crack-repair products or as substitutes for movement-capable expansion-joint systems.

Form Tie Waterproofing

Form tie systems can leave through-wall penetrations after removable components are withdrawn. These openings require permanent sealing where water exposure is expected.

Danterr solutions

• Form Tie Plugs — Used to seal compatible tie holes after removable tie components have been taken out.
• Form Tie Rings & Connectors — Compatible components incorporated into form tie waterproofing assemblies to help seal through-wall penetrations during construction.

Selection depends on the tie system, hole dimensions, installation stage and project specification. On compatible systems, both products may be used together where supported by the applicable product documentation and project detail.

Pipe Penetrations and Concrete Interfaces

Pipes, sleeves, conduits and irregular interfaces interrupt the continuity of concrete and can create leakage paths.

The waterproofing detail should account for:

• Penetration geometry
• Surface condition
• Expected movement
• Confinement
• Accessibility
• Compatibility with adjoining waterproofing systems

Danterr solutions

• Leakmaster — Suitable for verified pipe-penetration and rough-joint applications where a continuous gun-grade hydrophilic bead is required.
• Hydrotite — May be used for verified pipe-penetration details where a preformed hydrophilic profile is technically appropriate.

Product use should follow current manufacturer documentation and project-specific detailing.

Crack Waterproofing and Remediation

Concrete cracks can result from shrinkage, thermal movement, settlement or structural loading. The correct response depends on whether the crack is active, structural, dormant or subject to ongoing movement.

An appropriate repair or injection system should be specified based on:

• Crack cause
• Crack width
• Water flow
• Movement
• Structural condition
• Project requirements

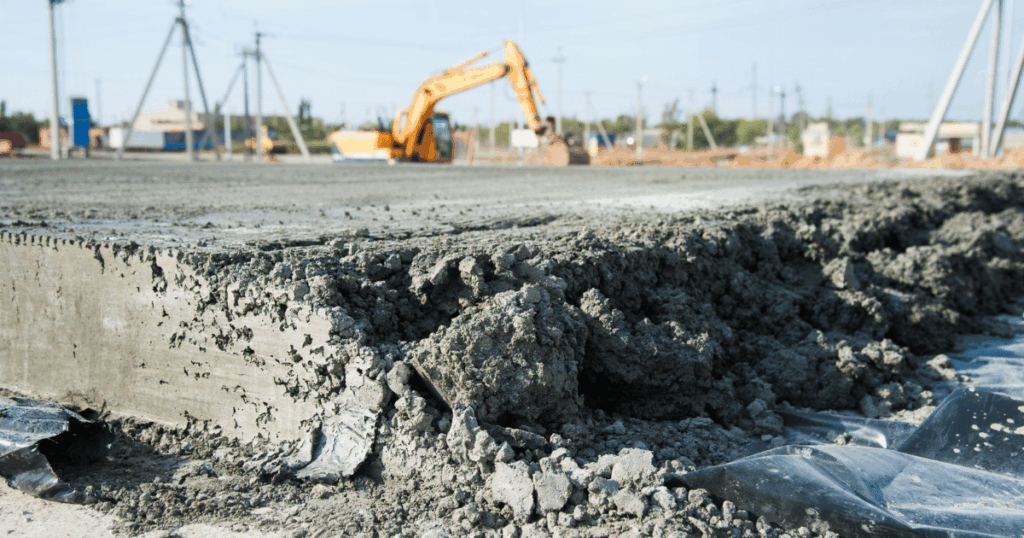

Foundation Walls and Below-Ground Surfaces

Below-ground walls and other concrete surfaces may require a continuous waterproofing barrier in addition to treatment of individual joints and penetrations. Sheet-applied membrane systems can isolate the concrete surface from surrounding groundwater and moisture, while associated detailing, protection and drainage components help maintain continuity of the waterproofing system.

Danterr solutions may include:

• Bituthene® Sheet Waterproofing Membranes – Self-adhesive waterproofing membranes applied to concrete surfaces to provide a continuous barrier against water and moisture in below-ground applications such as basements and other subterranean structures.
• Bituthene® Liquid Membrane – A two-component elastomeric detailing compound used with the BITUTHENE® waterproofing system for details such as terminations, T-joints and selected repairs.

Membranes protect broad concrete surfaces, while waterstops and penetration seals protect local details. Drainage helps manage water but should not be treated as a substitute for the waterproofing system.

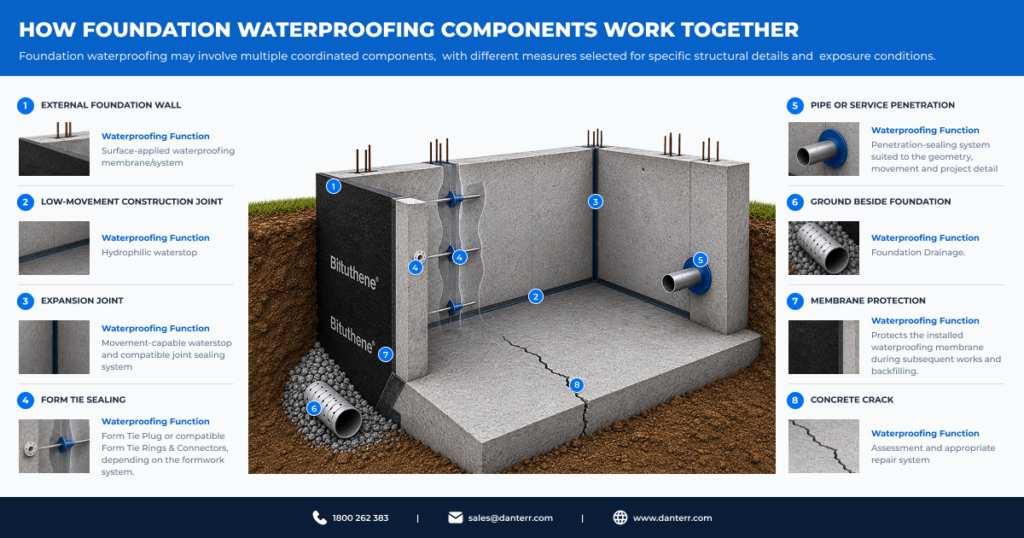

Waterproofing as a System

Foundation waterproofing may require multiple components to address different water-ingress risks and construction details. The appropriate combination depends on the structure, exposure conditions and project requirements.

Depending on the project, the waterproofing strategy may include:

• Surface waterproofing for external foundation walls and other below-ground concrete surfaces.
• Hydrophilic waterstops for low-movement construction joints.
• Form tie waterproofing for through-wall penetrations left by compatible formwork systems.
• Pipe and service penetration sealing for sleeves, conduits and irregular concrete details.
• Drainage to help manage groundwater and reduce water accumulation around the structure.
• Crack assessment and repair where concrete cracking creates a potential leakage path.
• Protection of installed waterproofing during later works, backfilling and site traffic.

Each component performs a different role. Membranes protect broad concrete surfaces, waterstops protect construction joints, form tie systems seal tie penetrations, and appropriately specified hydrophilic sealing systems may be used for selected pipe penetrations and irregular interface details.

Drainage supports the system by managing groundwater, but it does not replace waterproofing.

Common Waterproofing Mistakes to Avoid

Waterproofing failures often result from incomplete detailing, poor installation or selecting a system without considering the site’s water exposure.

• Poorly Prepared Construction Joints – Dust, laitance, standing water or other contamination can affect the installation of construction-joint waterproofing details.
• Discontinuous Waterstop Installation – Gaps, poorly formed joints or incorrect positioning can interrupt the continuity of the construction-joint waterproofing detail.
• Incorrect Waterstop Positioning or Insufficient Cover- A hydrophilic waterstop requires correct positioning and adequate confinement within the concrete to perform as intended.
• Poor Sealing Around Penetrations – Gaps around pipes, sleeves and services can become direct leakage paths through otherwise continuous concrete.
• Unsealed Form Tie Penetrations – Tie holes left after formwork removal can allow water to pass through below-ground concrete walls.
• Damaging Membranes During Later Works – Installed membranes can be punctured or displaced during reinforcement work, services installation, site traffic or backfilling.
• Ignoring Drainage Requirements – Allowing water to accumulate against a foundation can increase exposure and hydrostatic pressure.
• Selecting a System Without Assessing Groundwater Conditions – A waterproofing system selected without understanding the water source, pressure or duration of exposure may not suit the structure.

Why Early Waterproofing Planning Matters

Many waterproofing details become difficult or impossible to access after concrete placement, formwork removal or backfilling.

Early planning allows the project team to coordinate:

• Construction and expansion joints
• Waterstop locations
• Form tie penetrations
• Pipe and service entries
• Waterproofing membranes
• Drainage
• Protection of installed systems

Resolving these details before construction reduces the risk of gaps between trades and limits the need for costly remedial work later.

Conclusion

Water can reach concrete foundations through pressure, absorption and seepage, then enter through joints, penetrations, cracks, defects and interfaces. Identifying these risks early helps project teams select waterproofing systems suited to the structure, groundwater conditions and expected exposure.

Depending on the structure and exposure conditions, foundation waterproofing may combine surface membranes, waterstops, form tie sealing, penetration detailing, drainage and appropriate crack management. Each component must be selected and installed for its intended role.
